Lockheed C-130 Hercules Detail

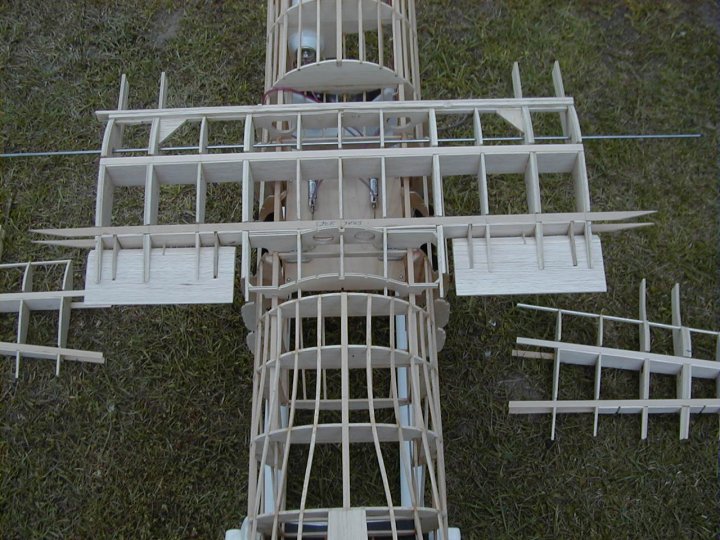

Fully functional Fowler Flaps in the retracted position. These are not simulated Fowler flaps but the real working ones just like on the real bird.


Here is a shot of the Flaps in the extended position. As they are lowered, they also slide rearward in a two slot plywood bracket

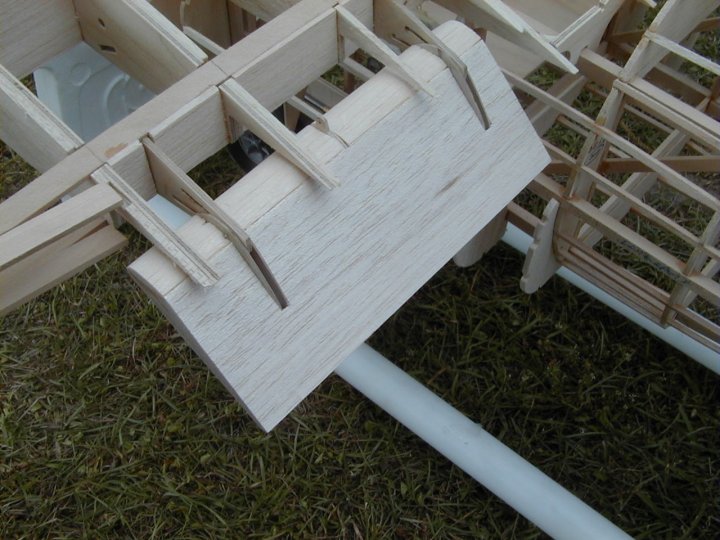

A close up shot of the Flap hinge bracket.

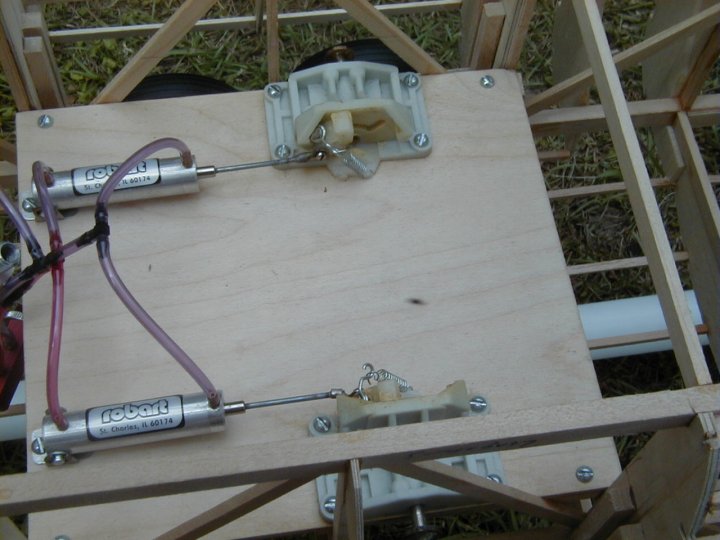

The Retract mechanics that lift the wheel assembly straight up to be scale. This is really a piece of work.

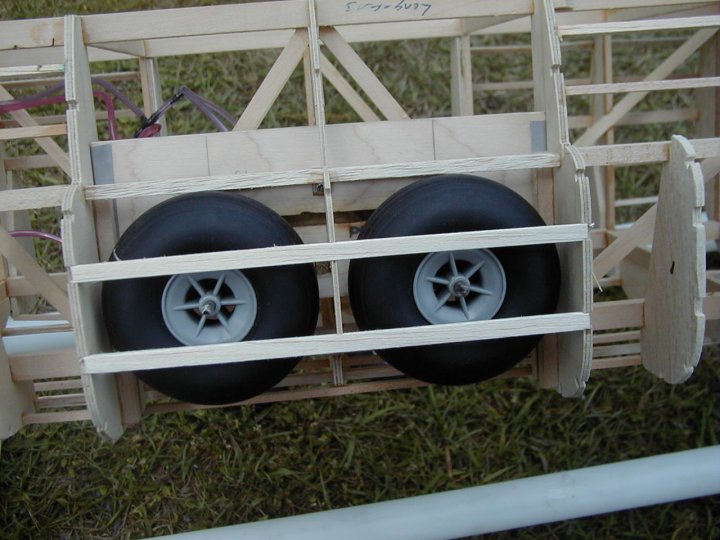

A close up shot of the gear in the retracted position. Gear doors are almost finished so the next step will be the linkage to make them close with the gear.

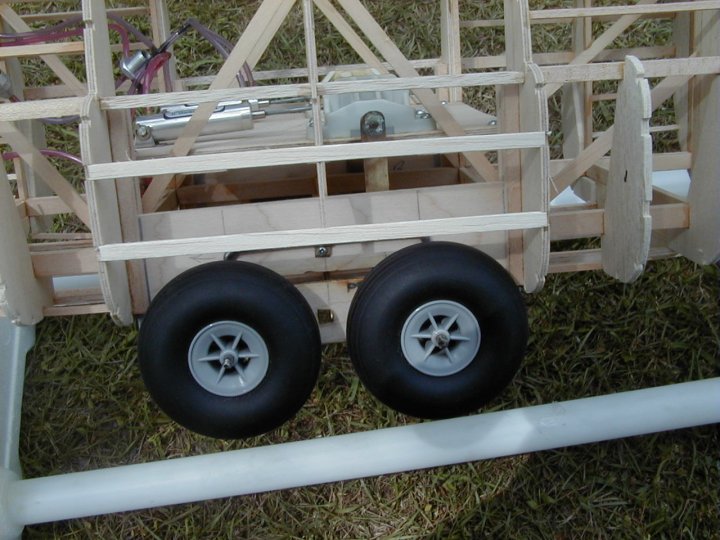

A shot of the mains with the  gear in the lowered position


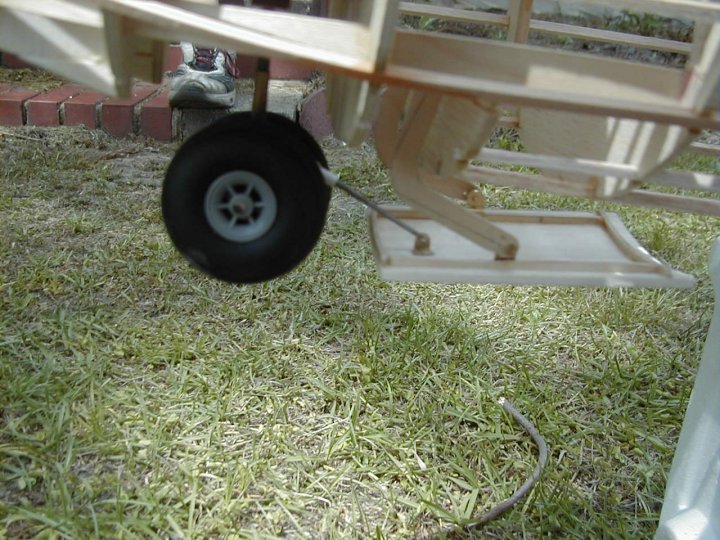

The twin nose gear with the gear door attached. Still a little tweaking to be done here to get it to close properly.
