Due to many, many request for a progress
report "with" pictures, I decided to pull
out the old digital camera and snap a few shots to show where it's at in the
building process now. If there are any questions, drop me an email. Hope to have
it
in paint real soon!!
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

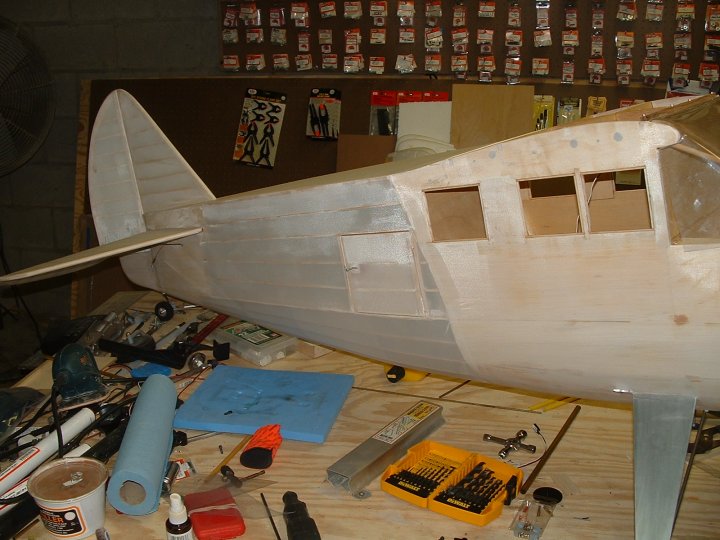

It's just about ready for final fabric

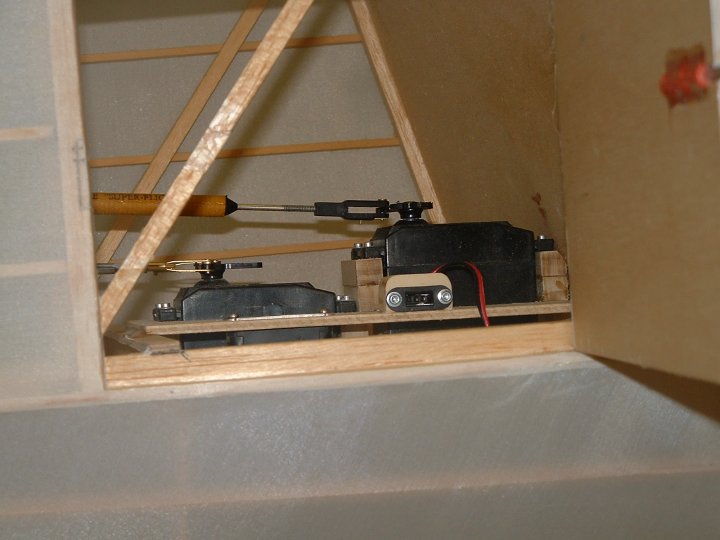

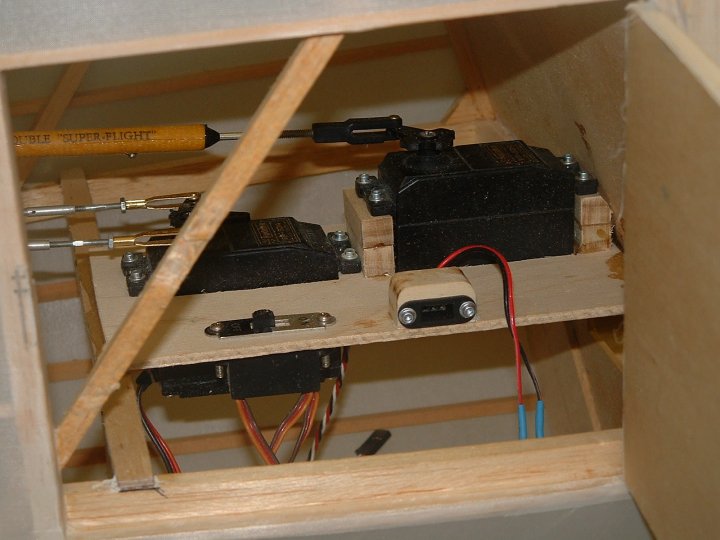

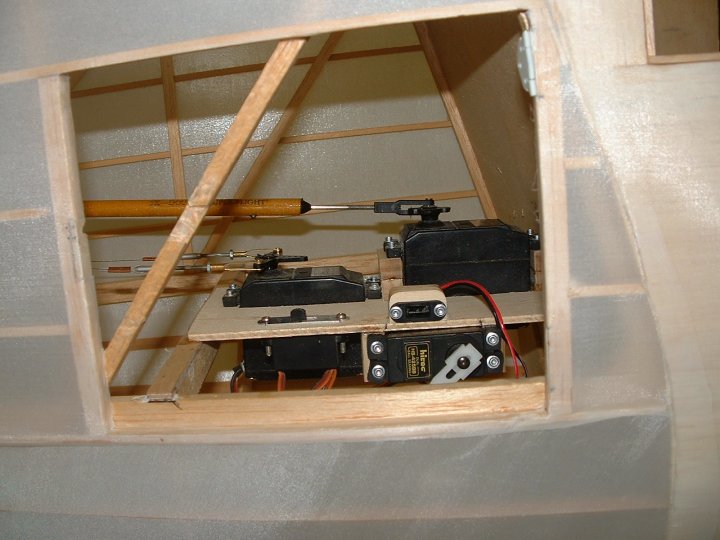

tightening, seam sealing very light sanding and then primer. The radio equipment
is all mounted with pull-pull on the rudder and a single fiber pushrod for the

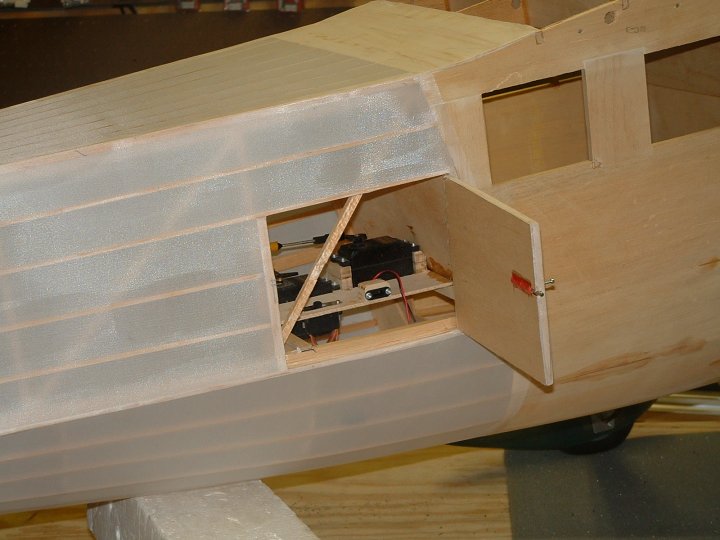

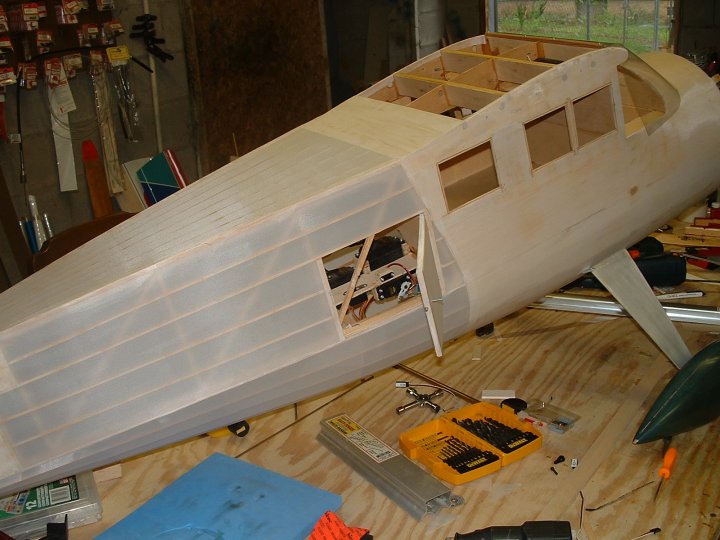

elevator split by a coupling at the rear. I modified the plans slightly to
install a door behind the cabin rear wall for access to the servos. These had to
be move back to help get some weight from the nose. The battery packs for both
the radio and the McDaniel
onboard glow
unit will also mount in the rear. Windows and windshield are now being cut and
put in place for final fitting. The front windshield was tough because there was
no template for it on the planes so I was totally on my own in making something

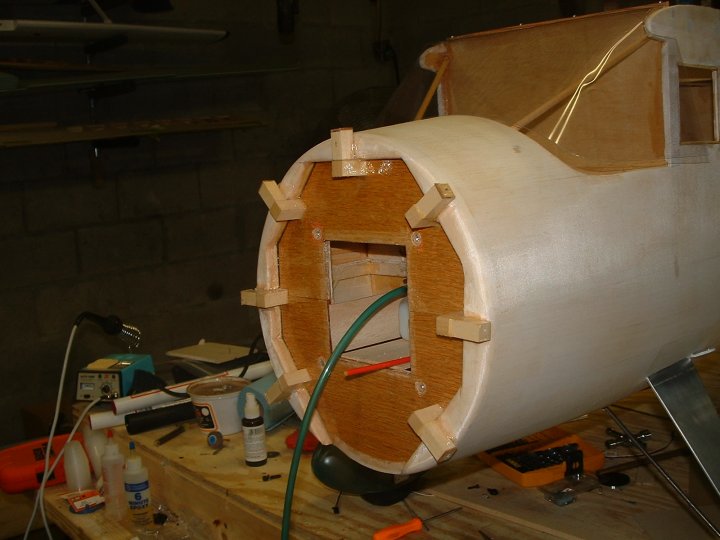

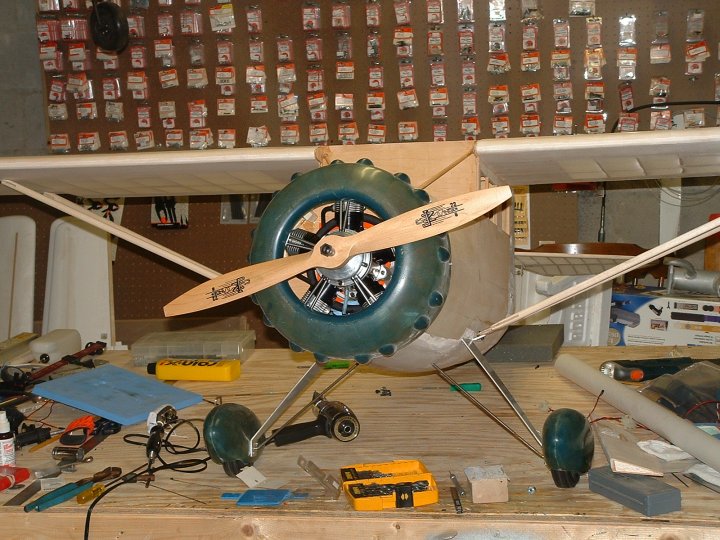

that would even begin to fit. The firewall was also not built to plans as they
do call for a box to be built moving the engine mounting plate forward. This
caused even more nose weight and also made the OS radial stick too far forward.
I did away with that extension and mounted the engine directly to the firewall.
Things came out just right. There is 6.25 inches from the firewall to the prop
hub on the engine. A longer engine would cause even more modification here.
Remember this kit was designed to fly with a good .60 size glow engine (yeah
right) so they had to move the engine forward. I don't think a really, really
good .60 would even taxi the plane on grass!! I'll try and post more as it gets
closer to it's new home in the Hangar.
